Quick Details

  • Type: Shafts
  • Use: Harvesters
  • Place of Origin: Canada
  • Brand Name: Rvton
  • Model Number: RG-30
  • Product name: Factory Price Tractor Seal Assembly For Kubota Harvester
  • Material: Bearing steel 100CR6 & NBR o rings
  • Process: Forge
  • Rubber Hardness: 60-65°
  • Metal Hardness: 58-62 HRC
  • Life-span: 5000HRS
  • Dimension: 50-1000 mm
  • Warranty: 18 months
  • OEM: Yes
  • Certificate: ISO9001& TUV

Packaging & Delivery

Packaging Details Factory Price Tractor Seal Assembly For Kubota Harvester
Wrapped in plastic bag to prevent from dust, then placed in a inner box, and then standard export carton outside.
Delivery Time Sample order delivered in 3 days, 20-30 days for mass production
Factory Price Tractor Seal Assembly For Kubota Harvester
ProductFactory Price Tractor Seal Assembly For Kubota Harvester
One setConsist of two metal seal rings and two silicone o rings
Factory#R1920
Part#RG-30
Weight1.355 kgs
OEMWe do oem and custom designs. OEM covers different brands.
ProcessForge
Lifetime5000HOURS
FOBWuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
PackingOutside: Standard export carton. Inside: inner box with our log. Each set will be placed in the pp bag tidily.
Warranty18 months
Used forExcavators and bulldozers undercarriage parts, travel motors, front idlers, track rollers, final drives; tractors; trucks



  • Technical parameters



METAL
Surface smoothness/roughness:                           ≤Ra0.2μm
Work face smoothness ≤Ra0.015μm
Pressure loading ≤0.3MPa
Forging line speed 2m/s
Casting line speed: 3m/s
Temperature range —100~200°C







RUBBERNBRSiliconeFluor
Rubber Ring hardness60-6560-6572-78
Minimum tensile strength11MPa10.6MPa11MPa
Minimum elongation at break      300%400%260%
Permanent deformation≤12%8%25%
Temperature range–40°C to +120°C   –49°C to +230°C    –30°C to +250°C



  • The out diameter is from 50mm to 1000mm.



Our types


RVTONG CODE

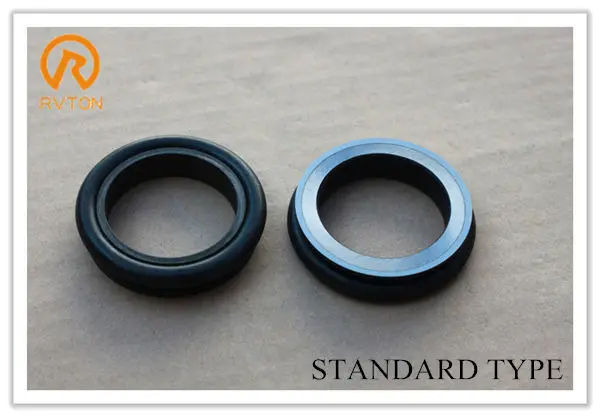

STANDARD TYPE

FLOATING SEAL

OD*ID*H (MM)

COMBINATION OF SIZE

OD*H (MM)

R038051*38*10.254.2*23.7
R1920215*192*16.5221*35
R2230A251.4*223.5*19257*42.3
R2230B251.5*223.5*23.2256*48
R6667700*667*22.2705.5*48


RVTONG CODE

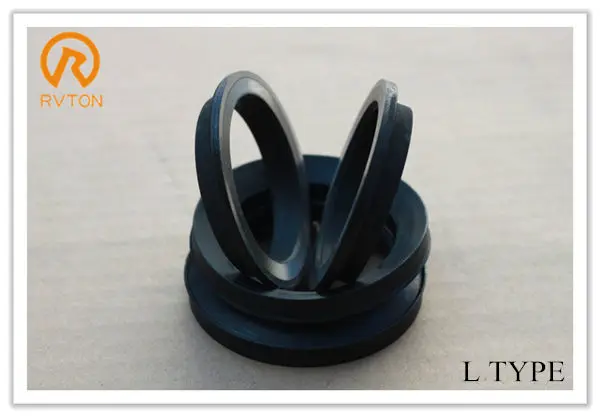

  L TYPE

 FLOATING SEAL

OD*ID*H (MM)

 R0670L 87*66.9*11.6
 R0730L 93*73.5*10
 R2000L229*200*18
 R2410L273*241*18.3
 R2470L270*247*21



RVTONG CODE

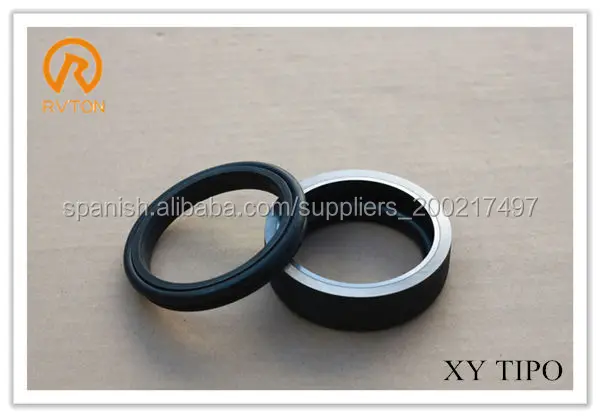

 XY TYPE

 FLOATING SEAL

OD*ID*H (MM)

 R0665X82.2*66.5*20.5
 R0665Y82.2*66.5*10.5
 R0760X 93*76*22
 R0760Y 93*76*10.5
 R1080X125*108*21.5
R1080Y125*108*10.5


RVTONG CODE

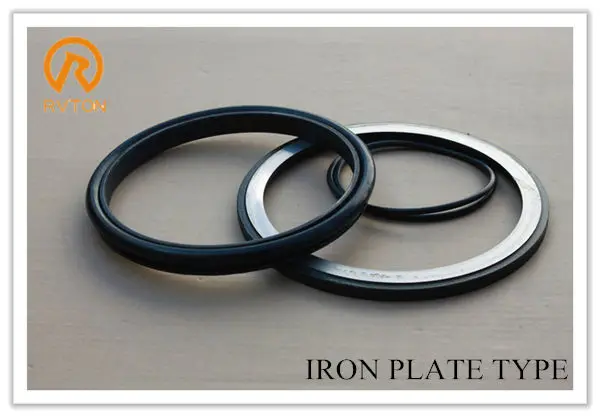

IRON PLATE TYPE

FLOATING SEAL

OD*ID*H(MM)

 R1800P180*164*9.7
 R2390P239*209*9.7
 R2600P260*216*13.3
 R2840P284*247*13.3
 R2900P290*248*13.3




  • OEM# refference
PC60-1, 2, 3110-30-00085110-30-00045110-30-00085
PC60-5,6141-30-00610140-30-00040141-30-00616

PC80-1

PC100-1,2

PC120-1,2

170-30-00210

171-30-00110

140-30-00141

141-30-00040



175-30-00070

175-30-00700

PC200

205-30-00052

130-27-00020

20Y-30-00040

10Y-30-00100

150-27-00025

150-27-00026

150-27-00027

D3, D3B

6P3595

9G5345

9W6690

9W6691

2M2858

5K6191

9W7216

9W7223

6P3595

9G5345

1P7249

5P7146

D4C4K60499G53119W6666
UH07, 084317586

4060222
4110359
4512571

4056360
4110362
4153732
4508193



  •  OEM Custom Machined Service



Welcome to contact us for our product catalog!  If the part# and size you can not find in it,  we can also make the seals with your size details or drawings.

The special floating seals and irregular type floating seals are welcomed to be passed to us, our engineer team will solve them.









About Us



1).We have manufactured floating seals for over 10 years.

 We are a professional manufacturer of floating seals in Hubei,China. We have a team of engineers and inspectors and the advanced techonogy absorbed from Italy.



2).The output is 50000 sets per month .

 Our innovated techonogy have our product' performace perfect and speed up the producing process.



3).We have our own brand “ RVTON

 Our own brand "RVTON" has high reputation among local and abroad. We sincerely hope you will be one of our partners.

 We sincerely welcome you to visit our factory, test our seals and to be one of our friends!
