Quick Details

  • Standard or Nonstandard: Standard
  • Style: Floating Seal
  • Material: Metal
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Rvton
  • Model Number: 9W7201/1326141/9G5323
  • name of floating seal: duo cone seal 9W7201/1326141/9G5323 undercarriage seals
  • OEM Model Number reference: Komatsu , Caterpillar, Hitachi
  • Lifetime of floating seal: 5000Hours - 8000hours
  • Hardness of floating seal: 58-62HRC/62-68HRC
  • Cover of Ring: NBR/Viton/Silicone/HNBR
  • Material of floating seal: 100cr6/Gcr15/E52100/534A99/SUJ2
  • Rubber Ring Pulling Intensity: ≤12% ±5°
  • Process of floating seal: Forging & Casting
  • Rubber Ring Hardness: 60°-65°
  • OEM accept: accept OEM Seals

Packaging & Delivery

Packaging Details duo cone seal 9W7201/1326141/9G5323 undercarriage seals Inner packing with plastic bags and box, outer packing with carton
Delivery Time immediate delivery or 2 - 4 weeks if not for floating seal

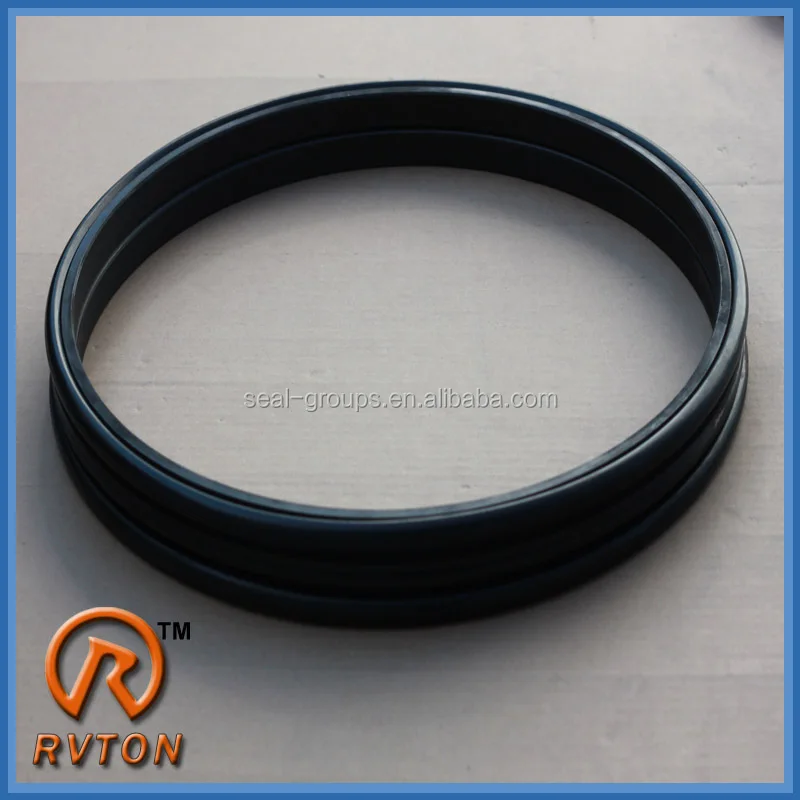

duo cone seal 9W7201/1326141/9G5323 undercarriage seals


Company Information

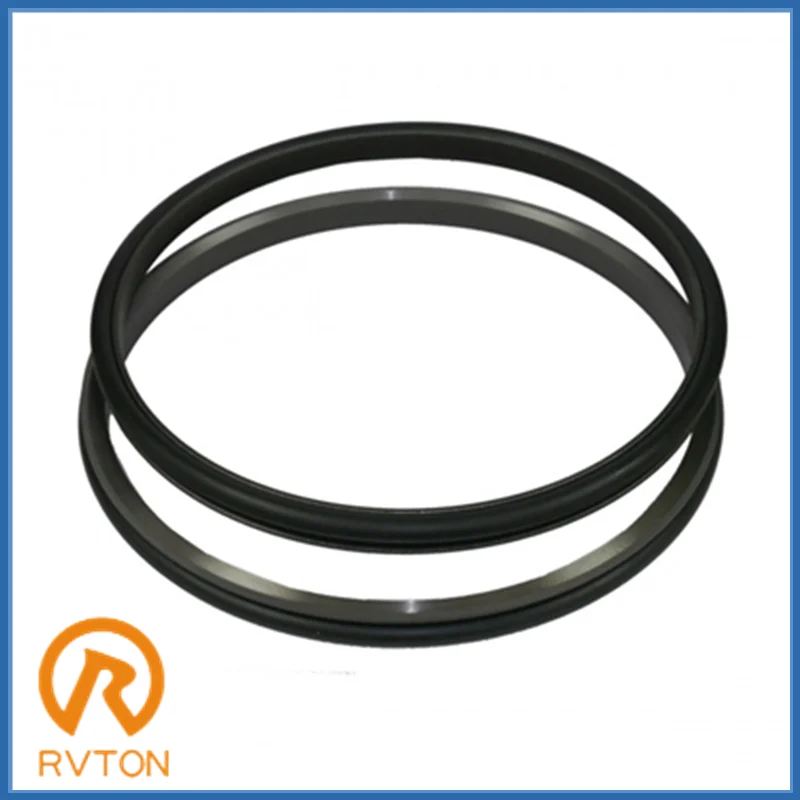

The seal group Set are consist of metal rings and rubber o rings



The metal rings:

Surface finish / Roughness≤ Ra0.2μm
Face finish≤ Ra0.015μm
Pressure≤ 0.3MPa
Forged/Casting  line speed2m / s &  3m / s
Hardness58 - 62 HRC
Temperature

 -100 ~ 200 °C



The rubber o ring:

Shore hardness60 ° ~ 65 °
Minimum tensile strength 11MPa
Minimum elongation at break 300%
Flexible change ± 5 °
permanent deformation≤ 12%


Advantages

The advantages of our product:

1.Coexistence of high quality and competitive price

2.Long service life 18 months

3.Easy to install

4.TUV& ISO, 11 years' manufacturing Experience

5.Good performance, International standard

Product Description
  •      Rvton Seal is also called floating seal, seal group, Duo cone seal, mechanical face seal, lifetime seal
  •      used in construction,engineering and mining machinery such as Excavator Bulldozer (Komatsu,Caterpillar),Shantui,Sany, tractor, cranes, etc.
  •      the outer diameter is from 50mm-1,000mm.
  •      The hardness is HRC58-62 , the working face precision within 0.015um.
  •      Flatness up to 0.1um-0.2um ,the lifetime is more than 5,000HRS.
  •      My factory can produce floating seal according to OEM codes or customize.
OEM Service

Directly cross to OEM for excavator, bulldozer, tractor seal groups, partial OEM seal ass'y listed below,

OEM steel printings could be offered on the seal body free of charge.



Model

OEM Codes

PC-200 /

PC-300-3

195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017

D-50 A- 15

140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010

E320

1M8746, 9W7225, 9W7220, 8E5609

EX 60

4283635, 4176379 , 4177260 , 4082631






Drawing: floating seal is produced according to our standard drawing or customer's drawing





standand type

Types of sealsOD (mm)ID (mm)height (mm)

180-27-00021

180

159

16

CR 1096

119

100

16

9G 5315

210

182

19

OK5110

229

200

18.5

5P 5829

260

230

19



L Type

Types of sealsOD (mm)ID (mm)height (mm)

U17386

62.1

47.1

10

U16187

72

54

10

U16186

87

66.9

11.6

655973C91

93

73.5

10





xy Type

Types of sealsOD (mm)ID (mm)height (mm)

9W 7232

70.5

53.7

31.5

7T0158

82.2

66.5

31

7T0159

93

76

32.5

7T0157

99

82

32.5



iron plate type
Types of sealsOD (mm)IDheight (mm)

TZ300A-1010

180

164

9.7

TZ310B-1027

185

158.7

12.3

TZ550A-1010

210

186

11.4

TZ850A-1010

230

201

13.3





Manufacturing process of each floating seal

Packaging & Shipping

Packing : neutral packing, yellow box, white box, and welcome your logo in packing



Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.





Application: Farm, construction, earthmoving, coal mining machinery as spare parts ...





Installation Methods:

  1.  Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

      2.  Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.





Trade Shows

Rvton welcomed many customers during Bauma 2014, it's a valuable experience for us.



Company Information

Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004.



Our factory absorb the Italian advanced technology of production and research and experience,

we have a special system to reach different customers requirement.



Now my factory have two production line:

one is for forgeable piece, hardness is HRC58-62, worktime is 5000HRS;

the other is for cast, hardness is HRC62-68, worktime is 8000HRS.



The inner diameter of floating seal is from 50-1,000mm.

There are four different types: stander type, XY type, L type and iron plate type.

Warranty & Certificate

Customers Design and Small Quantity Trial Orders are welcomed, we assure 18 months' warranty after each shipment and

we have a strong technical department to support aftersales. We have 10 years' experience in trading service.

We are doing my best to reach your requirement in good service,reputation and faith for long and strong relationship.

FAQ

1. As an inland company, how to arrange shipment ?

    This could be our advantage, as we are located in middle of China, it takes us same times to send goods either to Wuhan, ShanghaiNingbo, Shenzhen, or Xiamen port. We can deliver to most of ports for sea shipment.



2. Usually how long it take to finish an order ?

    4 - 6 weeks for a common order around 1000 sets, and we keep stocks for sample order or trial order, which can supply immediate delivery.



More questions ?? Any request now ? Welcome to contact following Macy for a quick answer :



Macy Cao
