Quick Details

  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Rvton
  • Model Number: WA180
  • Product name: WA180 wheel loader Floating Seal Assy
  • Material: Bearing steel 100CR6 & NBR o rings
  • Rubber Hardness: 60-65°
  • Metal Hardness: 58-62 HRC
  • Life-span: 5000HRS
  • Dimension: 50-1000 mm
  • Warranty: 18 months
  • OEM: Yes
  • Certificate: ISO9001& TUV

Packaging & Delivery

Packaging Details WA180 wheel loader Floating Seal Assy
Wrapped in plastic bag to prevent from dust, then placed in a inner box, and then standard export carton outside.
Delivery Time In stock
WA180 wheel loader Floating Seal Assy
ProductEX60 Travel Motor Seals
One set2 metal seals+ 2 rubber o rings
Dimension38-700mm
StockYes
OEMWe do oem and custom designs. OEM covers different brands.
ProcessForge
Lifetime5000HOURS
FOBWuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
MOQ1 set
Warranty18 months
Used forExcavators and bulldozers undercarriage parts, travel motors, front idlers, track rollers, final drives; tractors; trucks





  • Technical parameters



METAL
Surface smoothness/roughness:                           ≤Ra0.2μm
Work face smoothness ≤Ra0.015μm
Pressure loading ≤0.3MPa
Forging line speed 2m/s
Casting line speed: 3m/s
Temperature range —100~200°C



RUBBERNBRSiliconeFluor
Rubber Ring hardness60-6560-6572-78
Minimum tensile strength11MPa10.6MPa11MPa
Minimum elongation at break      300%400%260%
Permanent deformation≤12%8%25%
Temperature range–40°C to +120°C   –49°C to +230°C    –30°C to +250°C



Our types

RVTONG CODE

STANDARD TYPE

FLOATING SEAL

OD*ID*H (MM)

COMBINATION OF SIZE

OD*H (MM)

R038051*38*10.254.2*23.7
R1920215*192*16.5221*35
R2230A251.4*223.5*19257*42.3
R2230B251.5*223.5*23.2256*48
R6667700*667*22.2705.5*48


RVTONG CODE

  L TYPE

 FLOATING SEAL

OD*ID*H (MM)

 R0670L 87*66.9*11.6
 R0730L 93*73.5*10
 R2000L229*200*18
 R2410L273*241*18.3
 R2470L270*247*21


RVTONG CODE

 XY TYPE

 FLOATING SEAL

OD*ID*H (MM)

 R0665X82.2*66.5*20.5
 R0665Y82.2*66.5*10.5
 R0760X 93*76*22
 R0760Y 93*76*10.5
 R1080X125*108*21.5
R1080Y125*108*10.5


RVTONG CODE

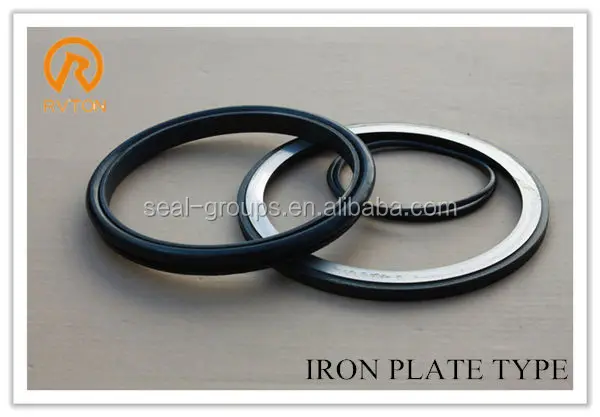

IRON PLATE TYPE

FLOATING SEAL

OD*ID*H(MM)

 R1800P180*164*9.7
 R2390P239*209*9.7
 R2600P260*216*13.3
 R2840P284*247*13.3
 R2900P290*248*13.3

We offer wide range oem part numbers floating seals and keep them in stocks to make sure the fast delivery. Size from ID38MM to 700mm.
Welcome to contact me now for quotations and more details.
Floating Seals are widely used in the undercarriage parts of excavators and bulldozers.


OEM FOR  Komastu, Hitachi, GNL, Goetze, Kobelco, Kobota, Dynapac and more

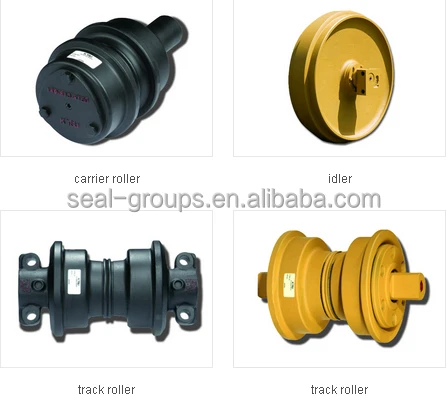

Model#Bottom rollerCarrier rollerFront idlerSprocket
PC60110-30-00085140-30-00040141-30-00610
PC20020Y-30-0004020Y-30-0009010Y-30-00100150-27-00026
E200B1M87468E56095P0204
E3209W72208E56099W7225
D60141-30-00616141-30-00616141-30-00610141-27-00015
D85ESS-1154-30-00832154-30-00832154-30-00832192-27-00022
D39E66909E72169E6691



Packaging & Shipping



Outside: Standard export carton.

Inside: Inner box. Each set will be placed in the pp bag tidily.

               Your special requirement are welcomed.

Wood pallet free of charge

- Shipping via air forwarder/ sea forwarder/ DHL/ UPS/ FEDEX/ TNT...

  • Manufacturing Process



  Inspection Sizes 100%



 Buffing Surface



 Grinding







Company Information

1).We are a professional manufacturer of floating seals in Hubei,China.

We have a team of engineers and inspectors and the advanced techonogy absorbed from Italy.



2).The output is 50000 sets per month .

Our innovated techonogy have us perfect our product' performace and speed up the producing process.



3).We have our own brand “ RVTON ”

Our own brand "RVTON" has high reputation among local and abroad. We sincerely hope you will be one of our partners.







FAQ

 - Are you factory?

   Yes, absolutely. 12 years factory in Hubei province, China



- How do you control the quality?

  100% inspect the size four times in the manufacturing process before a seal is exported.



- How long to make a shipment?

  In 2 days with stocks, 2-5 weeks according to your purchasing quantities if no stocks.



- Can i buy one to try?

  Yes, abosutely. We offer trial order and sample order for quality evaluation.



 More details please contact me! Good offer will be given to you.
